55 density polyurethane

Product Introduction:

Rigid polyurethane (PU/PUR) foam board is a closed-cell polymer material produced by the addition reaction of isocyanate and polyol. Its stable molecular structure makes it one of the best-performing industrial insulation materials currently available.

The product features a fully closed-cell structure, combining multiple advantages such as ultra-efficient thermal insulation, lightweight yet high strength, moisture resistance, corrosion resistance, and dimensional stability. It also boasts good sound insulation, impact resistance, and electrical insulation properties. Customized flame-retardant formulations are available, making it widely applicable in insulation applications for refrigerated trucks, cold storage facilities, containers, RVs, and building walls.

Inquier Now

Add To Cart

Share To:

Previous: 45 density polyurethane

Product Description
FRP Parameter Table
Application
Download
Inquire Immediately
Related Products

PRODUCT DESCRIPTION

Product Core Features

• Ultra-efficient thermal insulation: Thermal conductivity as low as 0.017 W/(m・K), its insulation performance far surpasses traditional materials, significantly reducing energy consumption.

• Closed-cell moisture-proof: Closed-cell rate ≥97%, water absorption rate ≤0.2%, no water absorption, no mold growth, and no aging even after long-term use.

• Lightweight and high-strength: Multiple density options available, balancing insulation performance and structural strength to suit various application scenarios.

• Dimensionally stable: No expansion or contraction, resistant to high and low temperature changes, no deformation or cracking even after long-term use.

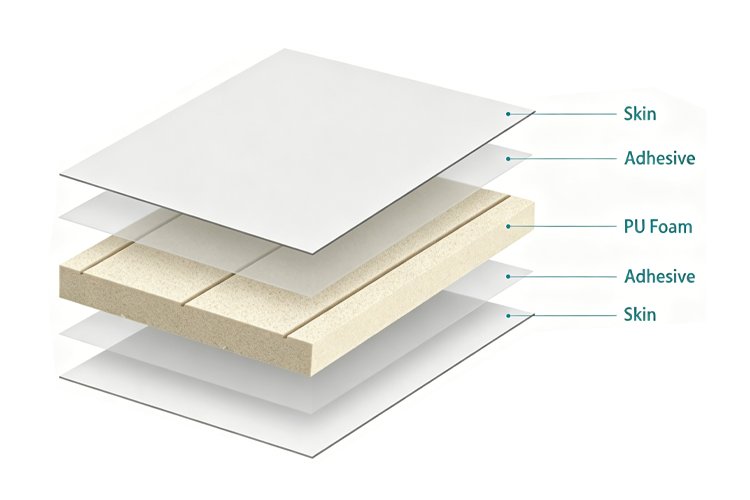

• Strong adhesion: Strongly bonds to surface materials such as FRP, aluminum plates, and color steel plates, suitable for various sandwich panel structures.

• Processing-friendly: Supports manual/mechanical cutting and CNC forming; specifications and shapes can be customized as needed.

FRP PARAMETER TABLE

Item	Unit	Standard Value (by Density Specification)
Core Density	kg/m³	35 / 40 / 45 / 70 (other densities customizable)
Compressive Strength	MPa	≥0.15 (35/40/45kg/m³) ; ≥0.30 (70kg/m³)
Closed Cell Content	%	≥97
Thermal Conductivity (k-factor)	W/(m·K)	0.017~0.022
Water Absorption	%	≤0.2
Long-term Operating Temperature	℃	-50 ~ +100
Flame Retardant Grade	-	Optional B1/B2 Grade (EN 13501-1 / GB 8624 Standard)
Dimensional Stability	%	±0.2 (under 70℃/24h condition)

Application scenarios for different densities

35kg/m³: Ultralight insulation type, suitable for weight-sensitive scenarios where insulation is the primary concern, such as RVs and light refrigerated trucks.
40kg/m³: General-purpose insulation type, balancing insulation and strength, the mainstream choice for cold storage and conventional refrigerated trucks.
45kg/m³: High-strength insulation type, balancing insulation and load-bearing capacity, suitable for medium and large refrigerated trucks and industrial cold storage.
70kg/m³: Structurally reinforced type, high strength and high stability, can be used as a load-bearing structural core material, suitable for heavy-duty truck bodies and special tooling.

Customization and Certification Services

Specification Customization: Customizable to different densities, thicknesses, sizes, colors, and shapes; supports batch cutting and CNC machining.
Testing and Certification: Provides multiple test reports including flame retardancy, VOC, acoustics, physical properties, and chemical environmental protection (RoHS/Reach), meeting international and domestic standards such as EN, ISO, and GB.

APPLICATION CASES

Special Vehicle Industry Application Solutions

Construction & Cold Storage Industry Solutions

RV & Camper Industry Solutions

Industrial Equipment Industry Solutions

Marine & Shipbuilding Industry Solutions

Agriculture & Livestock Industry Solutions

Environmental Protection Equipment Industry Solutions

Chemical & Corrosion Protection Industry Solutions

Mobile Shelter Industry Solutions
