Aluminum + XPS Sandwich Panel

Product Introduction:

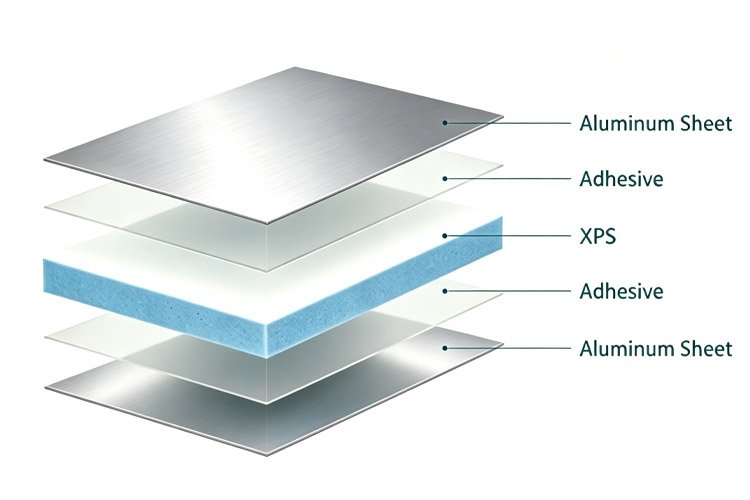

The surface layer consists of top and bottom alloy-coated aluminum sheets, with an XPS extruded polystyrene (XPS) core material bonded together under high pressure. XPS XPS boasts extremely high compressive strength, virtually zero water absorption, and consistently stable thermal insulation performance; the aluminum sheets are weather-resistant, corrosion-resistant, highly decorative, and resistant to fading. The entire panel combines load-bearing, moisture-proofing, thermal insulation, and decorative functions, making it particularly suitable for roofing, exterior walls, cold storage floors, and factory enclosure projects in humid areas.

PRODUCT DESCRIPTION

  • Product Core Features
    Product Core Features

    • High compressive strength, suitable for load-bearing floor and roof installation.

    • Completely closed-cell structure, excellent moisture and water resistance.

    • Stable thermal insulation performance, with no decline over long-term use.

    • Weather-resistant and corrosion-resistant aluminum surface, long outdoor service life.

    • Simple installation, high flatness, and aesthetically pleasing overall appearance.

FRP PARAMETER TABLE

Parameter ItemTechnical Parameter
Surface MaterialPre-painted / Anti-corrosion Aluminum Sheet (0.10~1.0mm thickness, customizable)
Core MaterialExtruded Polystyrene (XPS) Foam Board
Core Density30~45kg/m³ (Customizable)
Thermal Conductivity≤0.030 W/(m·K)
Panel Thickness20~100mm (Customizable)
Maximum Width≤3.2m
Maximum Length≤12m (Cut to size as required)
Long-term Operating Temperature-40℃ ~ +70℃
Water Absorption Rate≤0.01%
Application ScenariosBuilding roof insulation, cold storage flooring, industrial factory enclosure, thermal insulation for humid environments


Thickness, width, and surface texture can be customized according to customer project requirements.
