FRP + XPS Sandwich Panel

Product Introduction:

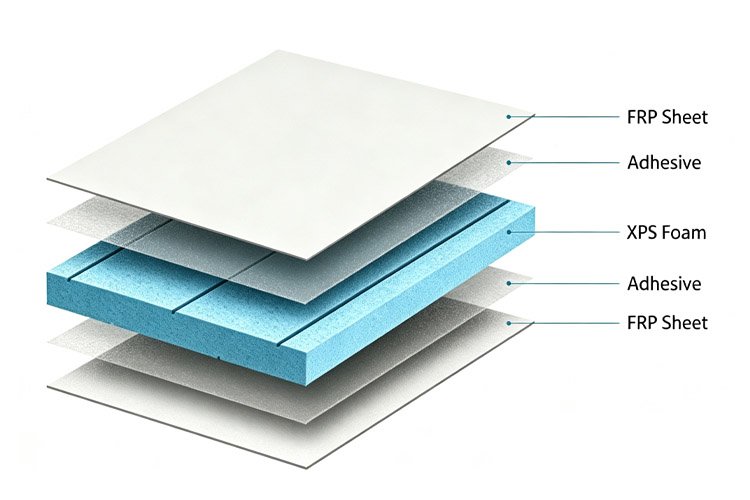

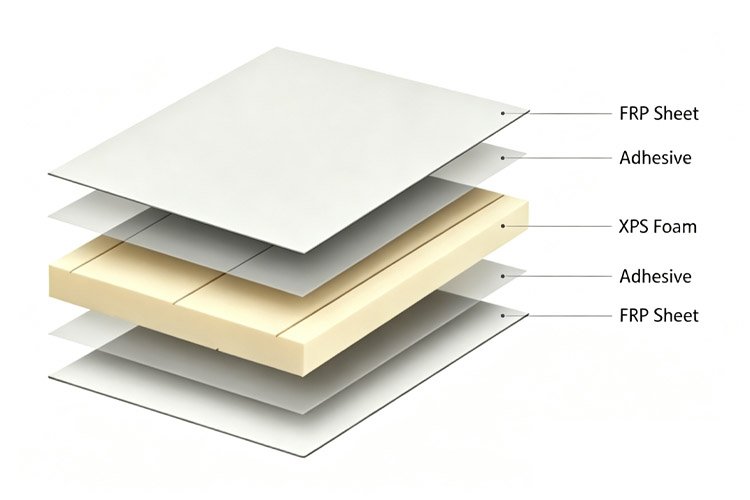

The surface layer uses FRP (fiberglass reinforced plastic) panels, and the core material is XPS (extruded polystyrene foam board), which is composite molded at high temperature. XPS has a uniform closed honeycomb structure, high compressive strength, almost no water absorption, and excellent moisture resistance; combined with the corrosion resistance, weather resistance, and easy cleaning properties of FRP, the overall board has good load-bearing capacity, moisture resistance, heat insulation, and resistance to high and low temperatures, making it suitable for high humidity, ground, roof, and building exterior wall insulation projects.

PRODUCT DESCRIPTION

  • Product Core Features
    Product Core Features

    • Ultra-high compressive strength, no deformation under load

    • Extremely low water absorption, outstanding moisture-proof and impermeable performance

    • Stable thermal conductivity, long-term insulation without degradation

    • FRP surface is corrosion-resistant, weather-resistant, easy to clean, and maintenance-free

    • Flexible size specifications, various thicknesses can be customized as needed

  • 1
    1

FRP PARAMETER TABLE

Parameter ItemTechnical Parameter
Surface MaterialHigh-gloss / Matte FRP Panel (1.0~3.0mm Thickness)
Core MaterialExtruded Polystyrene (XPS) Foam Board
Core Density30~45kg/m³ (Customizable)
Thermal Conductivity≤0.030 W/(m·K)
Panel Thickness20~100mm (Customizable)
Maximum Width≤3.0m
Maximum Length≤12m (Cuttable as Required)
Long-term Service Temperature-40℃ ~ +70℃
Water Absorption Rate≤0.01%
Application ScenariosExternal Building Wall Insulation, Cold Storage Flooring, Enclosure for Humid Environments, Roof Thermal Insulation
