Product Introduction:

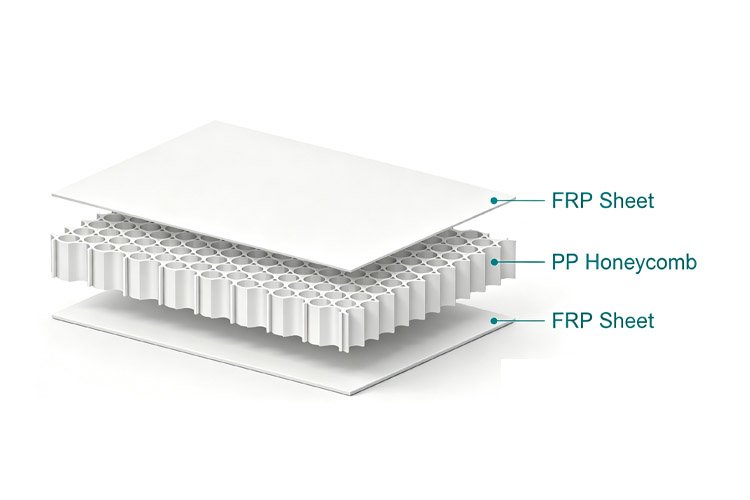

The top and bottom panels are made of FRP (fiberglass reinforced plastic) with an aluminum honeycomb/PP honeycomb core in the middle, and the core is hot-pressed with a high-strength, environmentally friendly adhesive film. The honeycomb structure is extremely lightweight, rigid, highly flat, and has excellent bending resistance. Combined with the FRP panels, it is aesthetically pleasing, corrosion-resistant, weather-resistant, and anti-aging. It is a lightweight, high-strength structural material suitable for enclosure and partition projects with high requirements for self-weight and flatness.

PRODUCT DESCRIPTION

  • Product Core Features
    Product Core Features

    • Ultralight weight, high strength, and high flatness

    • High bending stiffness, not easily deformed, and strong structural stability

    • Good sound insulation, shockproof and impact resistant

    • Waterproof, corrosion resistant, environmentally friendly and odorless

    • Various surface textures can be applied, giving it a high-end and sophisticated appearance

FRP PARAMETER TABLE

Parameter ItemTechnical Parameter
Surface MaterialHigh-gloss / Matte FRP Panel (1.0~2.0mm Thickness)
Core MaterialAluminum Honeycomb / PP Honeycomb
Core Density30~80kg/m³ (Adjustable by Honeycomb Specification)
Areal Density5~15kg/m² (Adjustable by Panel Thickness)
Panel Thickness10~50mm (Customizable)
Maximum Width≤2.8m
Maximum Length≤10m (Cuttable as Required)
Long-term Service Temperature-40℃ ~ +80℃
Compressive Strength≥0.5MPa (Aluminum Honeycomb Core)
Application ScenariosRV Wall Panels, Van Side Panels, Cleanroom Partitions, Lightweight Building Enclosure


Thickness, width, and surface texture can be customized according to customer project requirements.
